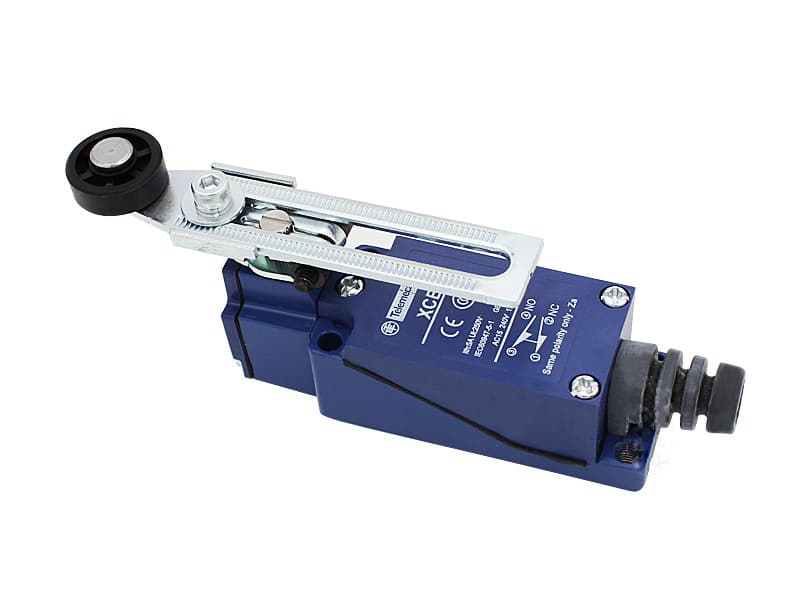

Công tắc hành trình XCE145
Specifications
| Attribute | Value |
| Actuator Type | Roller Lever |
| Pole and Throw Configuration | SP |
| Normal State Configuration | NO/NC |
| IP Rating | IP65 |
| Maximum Current | 1.5 A ac, 100 mA dc |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Series | OsiSense XC |
| Terminal Type | Screw |
| Length | 68.5mm |
| Width | 28mm |
| Mechanical Life Minimum | 15 x 10⁶ cycles |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
| Dimensions | 68.5 x 28 x 25 mm |
| Depth | 25mm |
