Hãng

VeEX

Bảo hành

12 Tháng

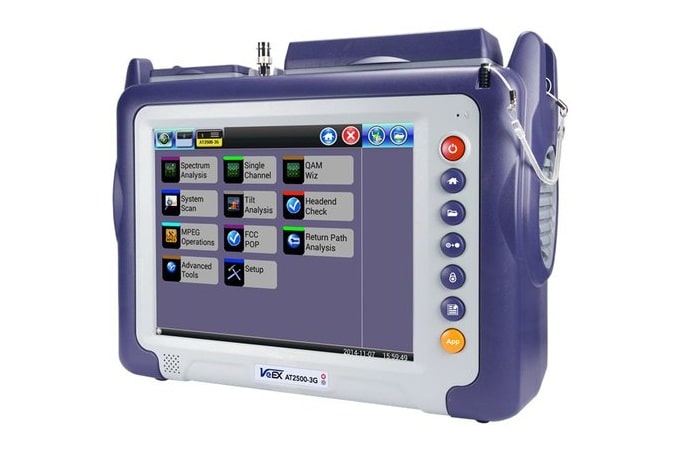

Designed for digital cable TV, OFDM signal analysis for D3.1, Satellite and over-the-air digital TV signal analysis and measurements, VeEX’s new AT2500-3G is the industry’s most complete 3 GHz advanced spectrum analyzer and multi-standards test solution. Incorporating a high-resolution color touch-screen, the AT2500-3G features 3 GHz spectrum analysis, digital channel, VeCheck, MPEG analysis and Ethernet test capabilities. Comprehensive SLM measurements include Single Channel, Fast Full Band and real-time plant level scan, Tilt and Headend Check. It also supports FCC proofs requirement tests and report automation.

PLATFORM HIGHLIGHTS

High resolution color 10.4” touch-screen with graphical user interface
Remote operation from any standard web browser using VeSion ATWEB*
Ethernet LAN management port for remote control, back office applications and workforce management
Fast and efficient test result transfer to USB memory stick or FTP upload via LAN, USB WiFi, USB data modem or USB Bluetooth
Maintain instrument software, manage test setups and channel tables, process measurement results and generate customer test reports using included ReVeal™ PC software
Ability to lock user interface to prevent unwanted human interference during long-term testing

KEY FEATURES

3 GHz high sensitivity advanced spectrum analyzer with built in automatic filters for increased dynamic range*
Superior QAM demodulation capability and excellent BER performance, featuring MER capability up to 47 dB
Annex A, B, C, CaTV OFDM 3.1 Signal Analysis, ISDB-T, DVB-S, DVB-S2, DVB-T, DVB-T2*
Fast Full Band VeCheck up to 1.2 GHz
Real-time Full Band Downstream Level Check
Multiple trace display with detector selection and enhanced markers for added flexibility
Comprehensive SLM measurements (Single Channel, System Scan and Tilt)

MPEG Explorer: QAM channel MPEG-TS analysis*
QAM Analyzer measurements (MER, Pre/Post BER, Constellation diagram, QIA Anaylzer, Histogram and Equalizer on/off mode)
Advanced Digital measurements (HUM, EVM, Phase Jitter, Symbol Rate Error, Frequency Response, Group Delay)
FCC Proof of Performance Tests
RealPop (SaaS) for FCC Proof report automation*
Headend Check auto test for the entire selected Channel Table lineup*
Isolates difficult to locate problems using comprehensive QAM Impairment Analysis

CaTV/Satellite/Over-the-Air HDTV Next Generation Test Solution
